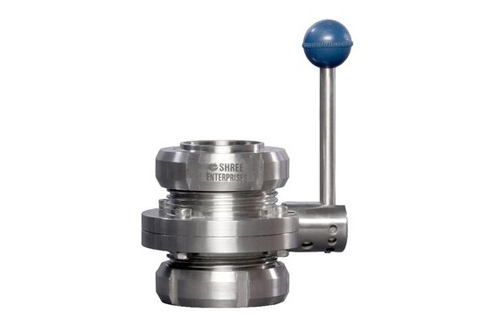

Type 1 - One Side Flange one side Union

Type 2 - Both side Union

Type 3 - Plain End

Application

Stainless Steel Butterfly Valves are widely used in Beverage, winery. Chemical Pharma & Dairy industries Mainly used for closing & Opening Purposes.

Technical Info

• 1. Maximum Tested Pressure: 10 BAR
• 2. Minimum Working Pressure:-1 BAR
• 3. Maximum Vacuum: -9 BAR
• 4. Connections - Expandable & Weldable & Flange Type & Plain End Weldable Type
• 5. Material ( MOC )- AISI 304/316/304L/316L
• 6. Made according to AISI/SMS/DF Standard
• 7. Minimum Temp: -20°C
• 8. Gasket - Nitrile/ Silicon/EPDM

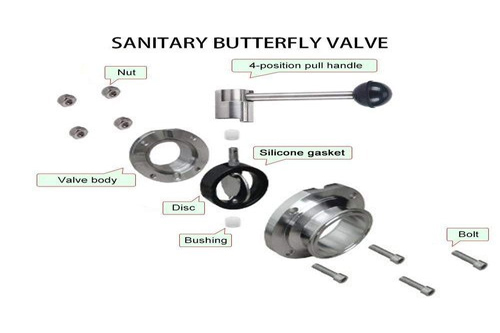

Design Features

• 1. High Pressure Resisting ensuring longer life
• 2. Smooth Disc Rotations.
• 3. Symmetrical Body.
• 4. Easy In Operation
• 5. Minimum Flow resistance
• 6. Easy for Easy to install & Maintain

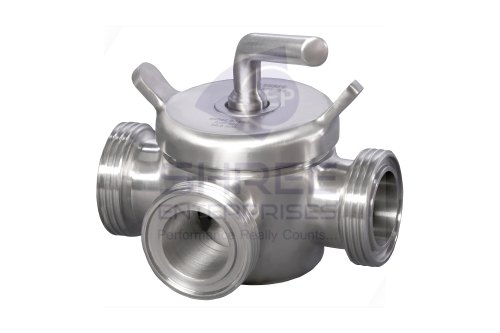

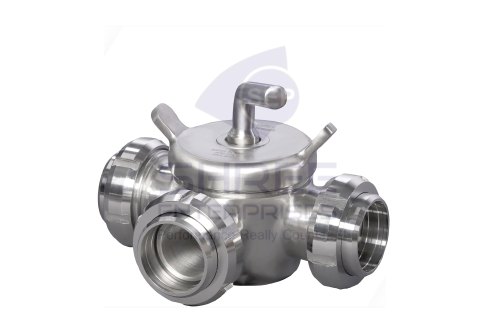

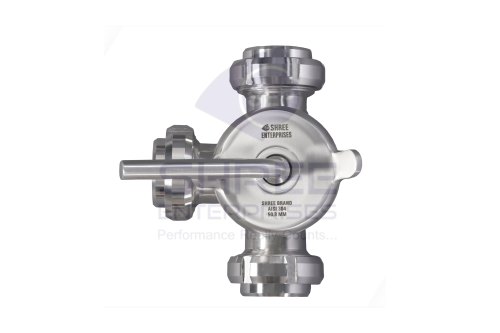

Type 1 - Way Plug Valve With Both Side Unions

Type 2 - Way Plug Valve

Type 3 - Way Plug Valve with One side flange & One side Union

Technical Info

• 1. Maximum Temp: 95°C
• 2. Minimum Temp: -20°C
• 3. Finish: Matt & Mirror
• 4. Maximum Tested Pressure: 10 BAR
• 5. Minimum Working Pressure : Maximum Vacuum
• 6. Material (MOC): AISI 304/316/304L/316L
• 7. Gasket: Nitrile/ Silicon/EPDM, Top Plastic Ring - Teflon
• 8. Connections: Expandable & Weldable & Flange Type

SS 3 Way Plug Valve are generally used in dairy plants to divert the flow form one line to another.

Application

Stainless Steel Plug Valves are used in Beverage, winery, Chemical, Pharma & Dairy Industries for providing unidirectional diversion of flow or Precise Closing.

Design Features

• 1. Stainless Steel plug valves are designed in an ergonomically easy way ensuring simple operation.
• 2. The plug is manufactured in a conical way as well as the plug's body is precisely lapped.
• 3. The plug Valve's Body is provided with 2 O'Rings for ensuring complete sealing of valve.

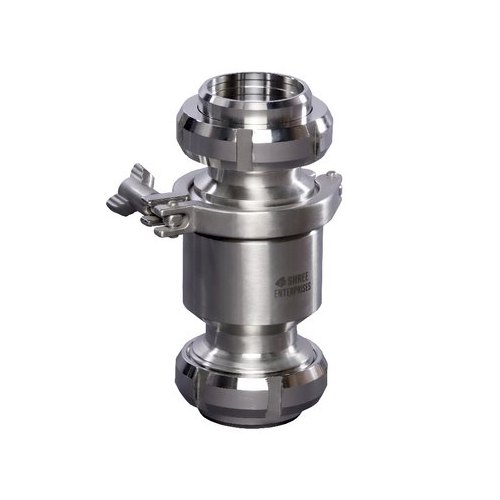

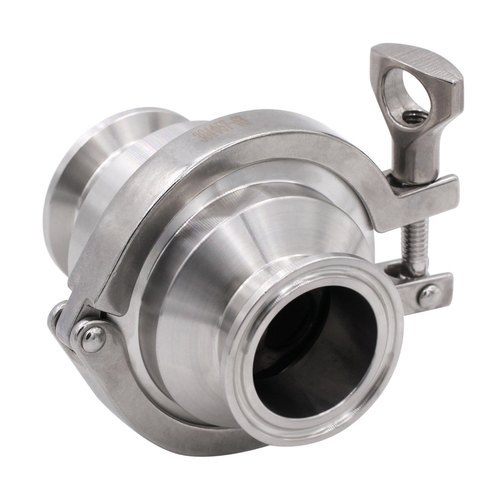

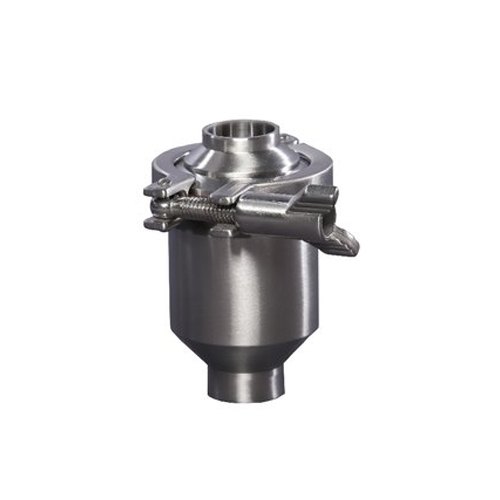

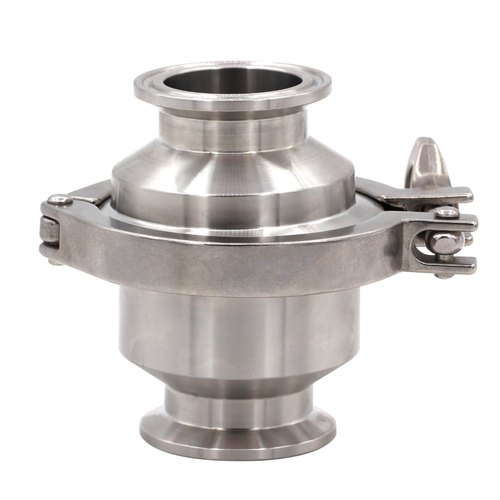

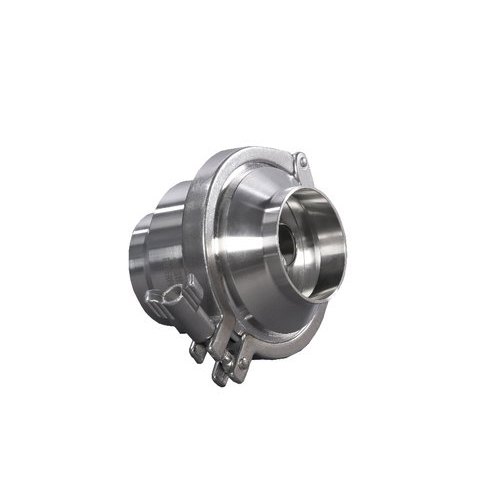

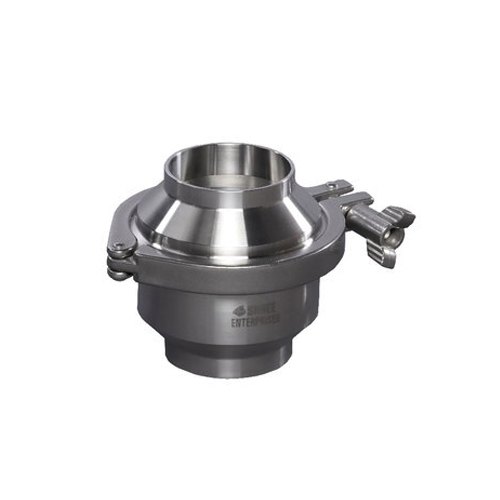

Stainless Steel Non Return Valve is Widely used in Dairy, Pharma, Beverage & Chemical Industry where back flow of Product in pipe is avoided.

Design Features:

• 1. The valve is constructed with highest precision and forged parts.
• 2. The design is compact Easy for maintenance & Dismantling.
• 3. Provided with Tri-Clover Clamp for hustle free Sensitization & Assembly.
• 4. Fully CNC Machined Components.
• 5. Can be used in Horizontal & Vertical Positions
• 6. Design suitable for CIP Use.

Application

Used in places where the back flow of product in pipe line must be avoided.

Stainless Steel NRV are applicable in dairies, Chemical Industries and Beverage industries.

Available Sizes

•   25,38,51,63.76.101 MM)

Technical Info:

•   Maximum Tested Pressure :10 BAR
•   Minimum Working Pressure : -1 BAR
•   Maximum Vacuum : -9 BAR
•   Maximum Temp: 95°C
•   Minimum Temp: -20°C
•   Gasket - Nitrile/ Silicon/EPDM
•   Spring - AISI 304/316
•    Connections - With Expandable & Weldable Unions & Plain End Weldable Type

Technical Info:

•   Maximum Tested Pressure - 10 Bar
•   Minimum Working Presure : Maximum Vaccum
•   Connections - With Expandable & Weldable Unions
•   Material ( MOC )- AISI 304/316/304L/316L
•   Maximum Temp-95°C.
•   Minumum Temp: -20°C

Design Features:

• 1. Single Piece Body Design For Maximum Life span.
• 2. Hustle free operation.
• 3. Extreme Prssure Resistance & Accuracy.
• 4. Forged Components & CNC Machining.

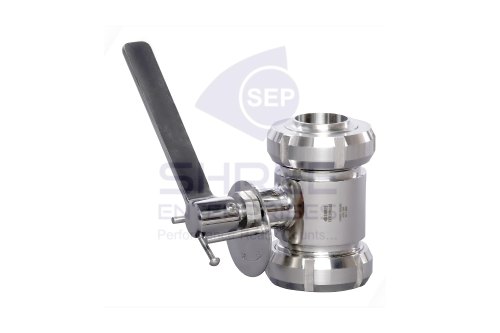

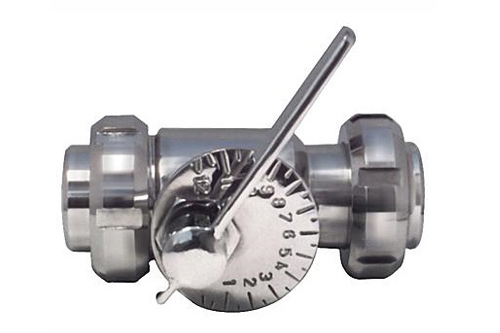

These SS Flow Control Valve are manual operated valves to regulate the flow from full open to fully closed. These are designed specifically to control the process accurately.

Stainless Steel Flow Control Valve & Micro Valves are used in Dairy, Chemical, Beverage & Pharma Industries for Optimum Controlling of flow of product in pipeline.

Available Sizes

•   25,38,51.63 [mm]
