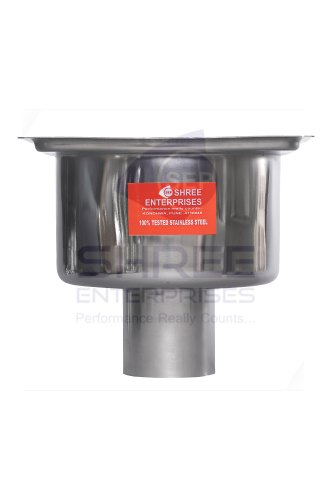

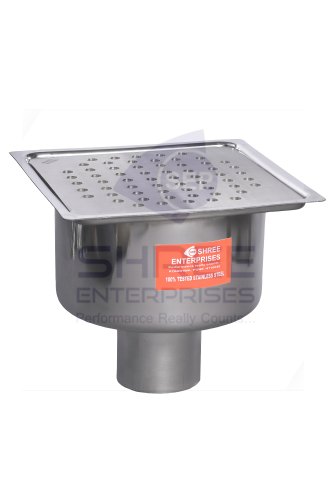

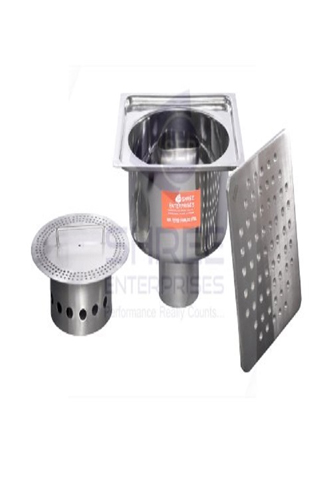

SS Amul drain trap / Drain trap

Providing you the best range of SS Amul Drain Trap and Amul Drain Traps with effective & timely delivery.

Sailent Feature
  • 1. Very Hygienically Designed Body with Die Pressing.
  • 2. 10 mm Slots For drainage.
  • 3. Circular Slots/ holes ensure the drainage of smaller particles & waste liquid only.

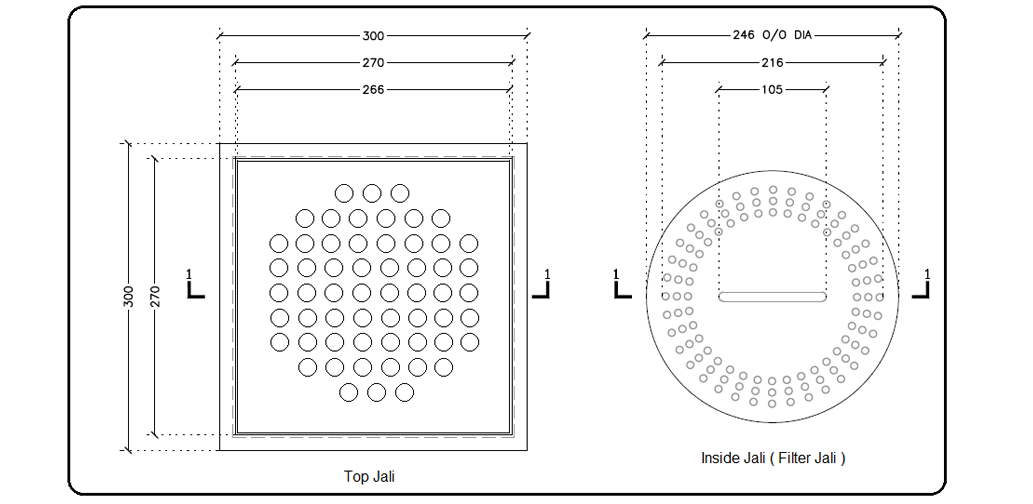

  • 4. 88 Holes again inside the stopper circle Body to Ensure further filtration of particles.
  • 5. Easy To Install & Maintain.
SS Amul drain trap / Drain trap
Shape Square
Material Stainless Steel
Size 300 x 300 mm
Usage/Application Dairy, Food, Pharmaceutical, Chemical & Beverage Industry.
Connection Type 4 inch pipe
Thickness 10 mm
Grade SS 304
Application

Stainless Steel Amul Drain Traps are used in industries such as dairy Pharma, Beverage, Chemical Industries for preventing bad oduor & insects to enter the plant.

Description:

  SS Amul Drain Trap are used as drainage points in Dairy and Allied Industries Material of Construction may be completely SS 304 with Pleated Top SS Amul Drain Trap are available in two profiles, i.e. Square and Circular Generally Amul Traps are of 300 mm Size (Top Surface Dimension) with outlet of 4" Dia Most common area of working of SS Amul Trap is in laboratories and of Amul Trap is at all the part of Dairy Industries from where the dirty water, chemical, etc. is drained off

  With keen obligation towards excellence, we have brought forth a wide variety of SS Amul Drain Trap.

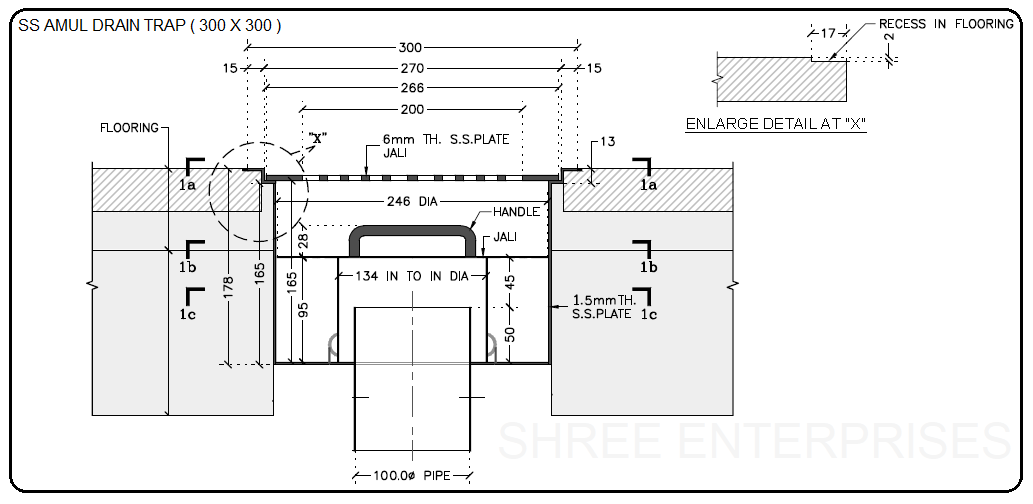

Technical Info
  • 1. Overall size: 300 X 300 mm.
  • 2. Outlet of 4 Inch Pipe.
  • 3. Complete Stainless Steel Construction
  • 4. Material ( MOC)- AISI 304/316/304/316L
