Design Features:
  • 1. Consists of Stainless Steel Membrane (Jali) Ensuring Maximum Strength & Long Life.
  • 2. Stainless Steel Filters are ergonomically designed with Highly Precise Parts.
  • 3. Provided with Tri-Clover Clamp for hustle free operation.
  • 4. Minimum Back Flow or Resistance.
  • 5. Easy to assemble & Disassemble.
  • 6. Least Pressure Drop.
Technical Info:
  • 1. Maximum Tested Pressure - 10 Bar
  • 2. Minimum Working Pressure : Maximum Vacuum.
  • 3. Maximum Temp-95°C
  • 4. Minimum Temp: -20°C
  • 5. Material (MOC)- AISI 304/316/304L/316L
  • 6. Connections - With Expandable & Weldable Unions
  • 7. Gasket - Nitrile/ Silicon/EPDM & Optional

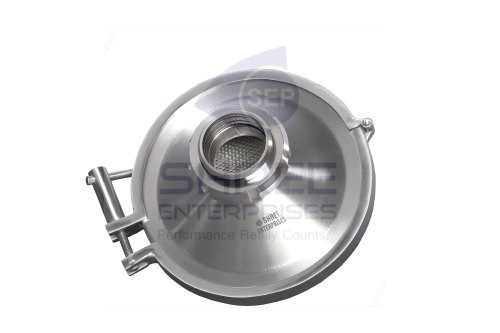

SS Dairy Disc / Conical Milk Filter
Capacity 50,000 LPH
Equipment Type Dairy Equipment
Filter Medium Material Stainless Steel
Shape Round
Automation Grade Manual
Surface Finish Matt or Mirror
End Connection SMS Union
Packaging Type Carton Box
Gasket Silicone or EPDM
Grade SS 304
Size/Dimension 1 Inch to 4 Inch
Usage/Application Milk,Water or any Other Homogeneous Mixture

Type 1 - Pipe Filters / Tube Type Filters

Type 2 - Disc Type / Conical Filter

Type 3 - Duplex Filters

SS Pipe In Pipe Filters are exclusively used in Dairy, Chemical, Pharma & Beverage Industries for filtrations & straining purposes.

Enquire Now
  • 1. Maximum utility
  • 2. Excellent strength
  • 3. Fine finishing
  • 4. Connection - SMS Std.

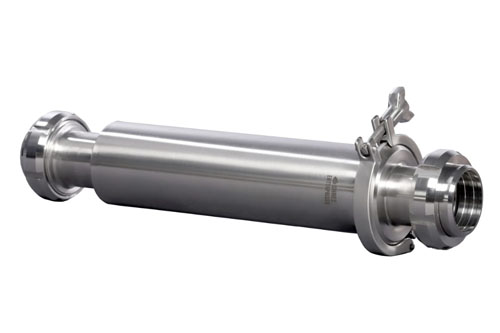

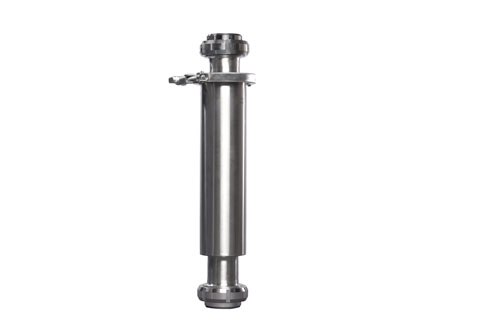

SS Dairy Pipe In Pipe Filters
Material Stainless Steel
Size/Dimension 25 mm to 63.5 mm
Temperature 0 to 240 Degree Celsius
Grade SS 304

Capitalizing on the experience and understanding of our executives, we have come up with a broad assortment of SS Pipe In Pipe Filters. Shree Enterprises manufacturing stainless steel Pipe in Pipe Filters with prime quality steel, strong structural strength with modern technique. Easy to open & Clean with International standard Polish.

Enquire Now

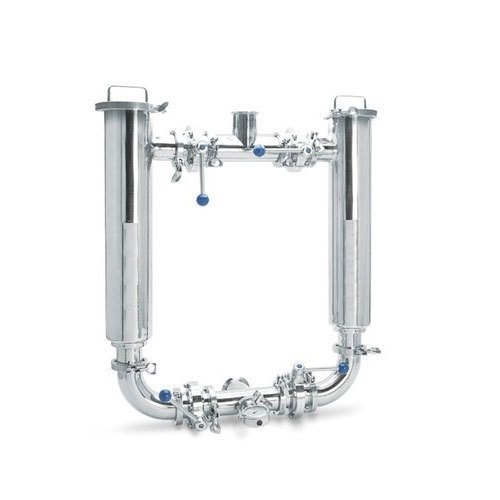

Stainless Steel Duplex Milk Filter
Diameter 1/1.5/2/2.5 inch
Usage/Application Milk Filter
Material Grade AISI 304
Length 10-15 inch
Surface Finishing Matt / CNC / Mirror
Technique Hot Rolled
Temperature 0 to 140 Degree Celsius
Packaging Type Carton Box

Stainless Steel Duplex Milk Filter generally used to filter products to maintain the quality of the product.
